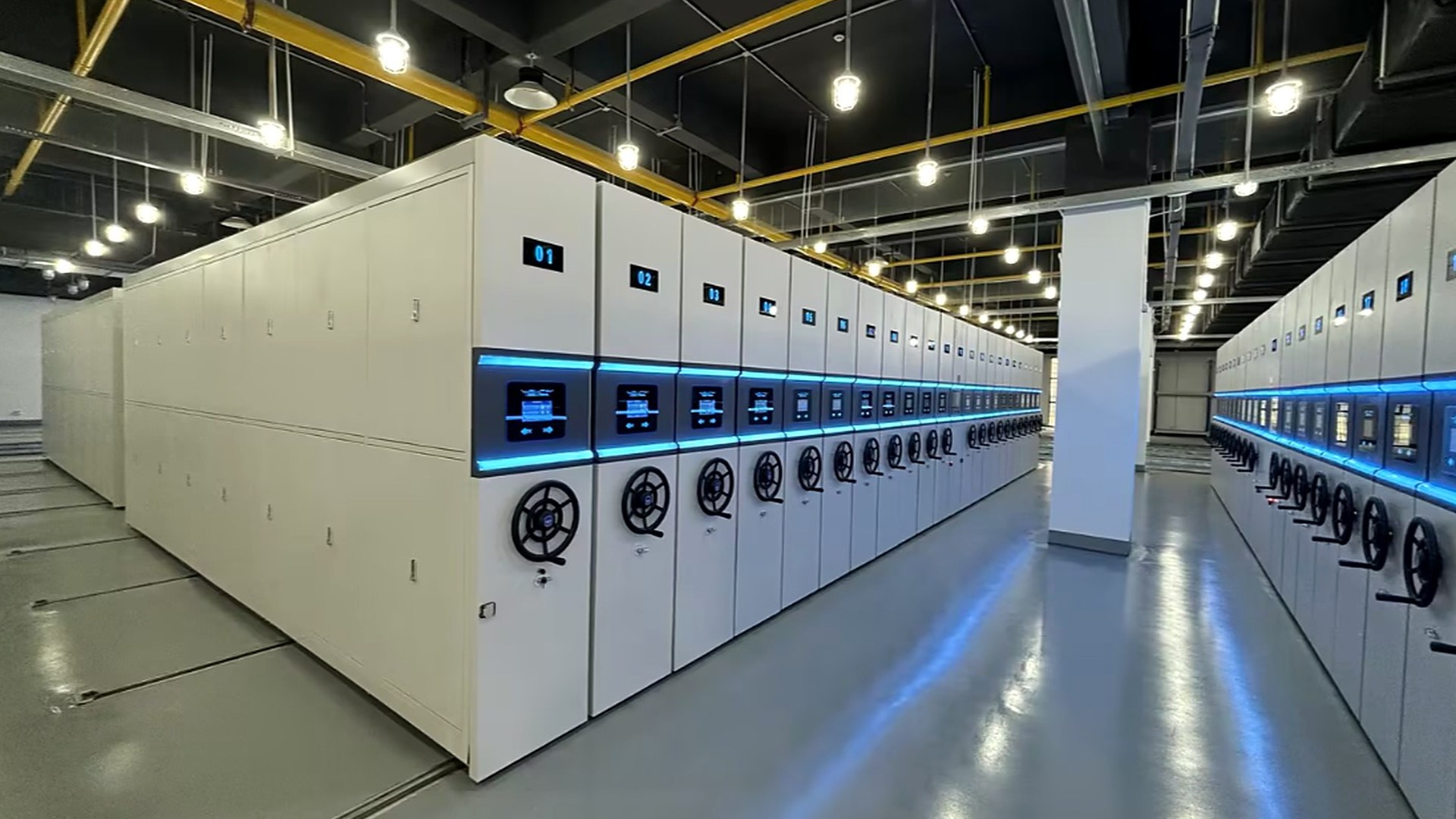

No.01 Spider-Wheel Smart
One wheel.Every aisle.Fully tracked.
A single spider-wheel opens the aisle, a 0.5 kW drive moves the bay, and a 15.6-inch terminal tells you exactly where every tray lives. The same welded steel platform we build for the whole range — instrumented.
The drive § 01
A motor you
can over-ride by hand.
Drive unit

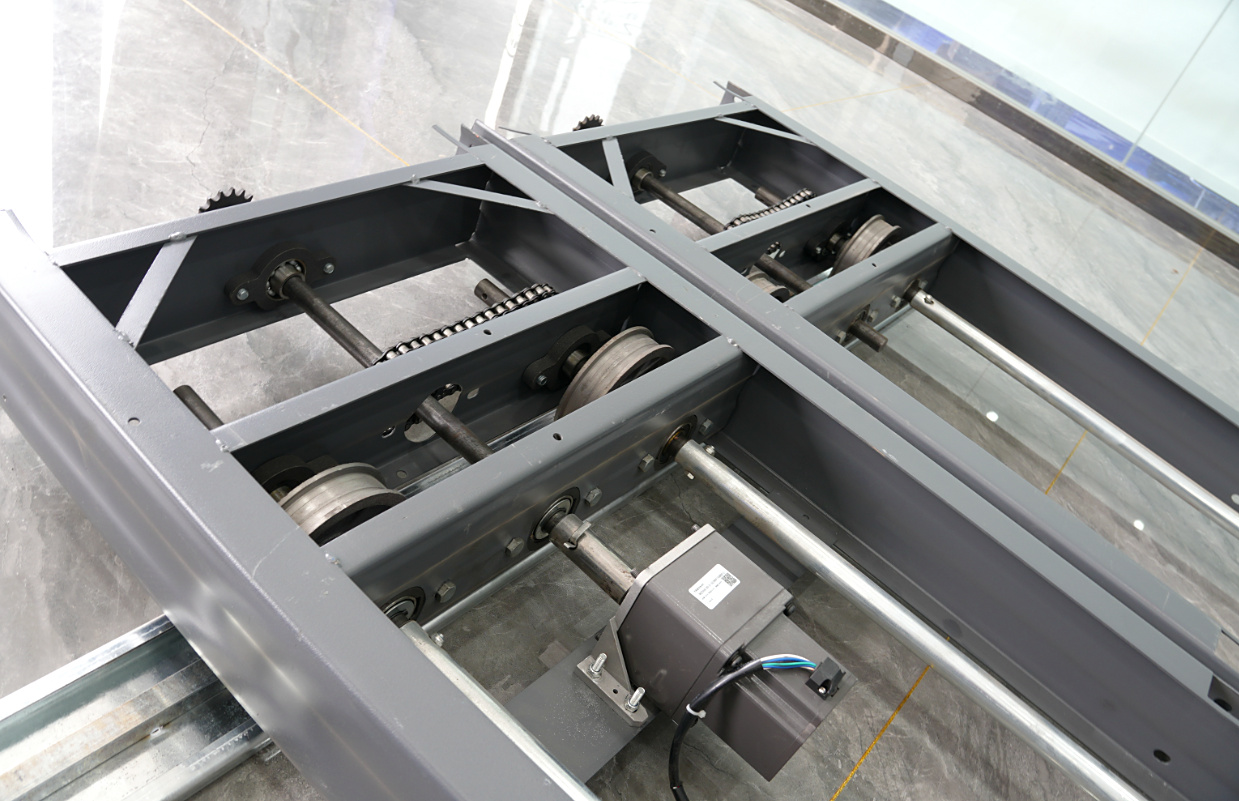

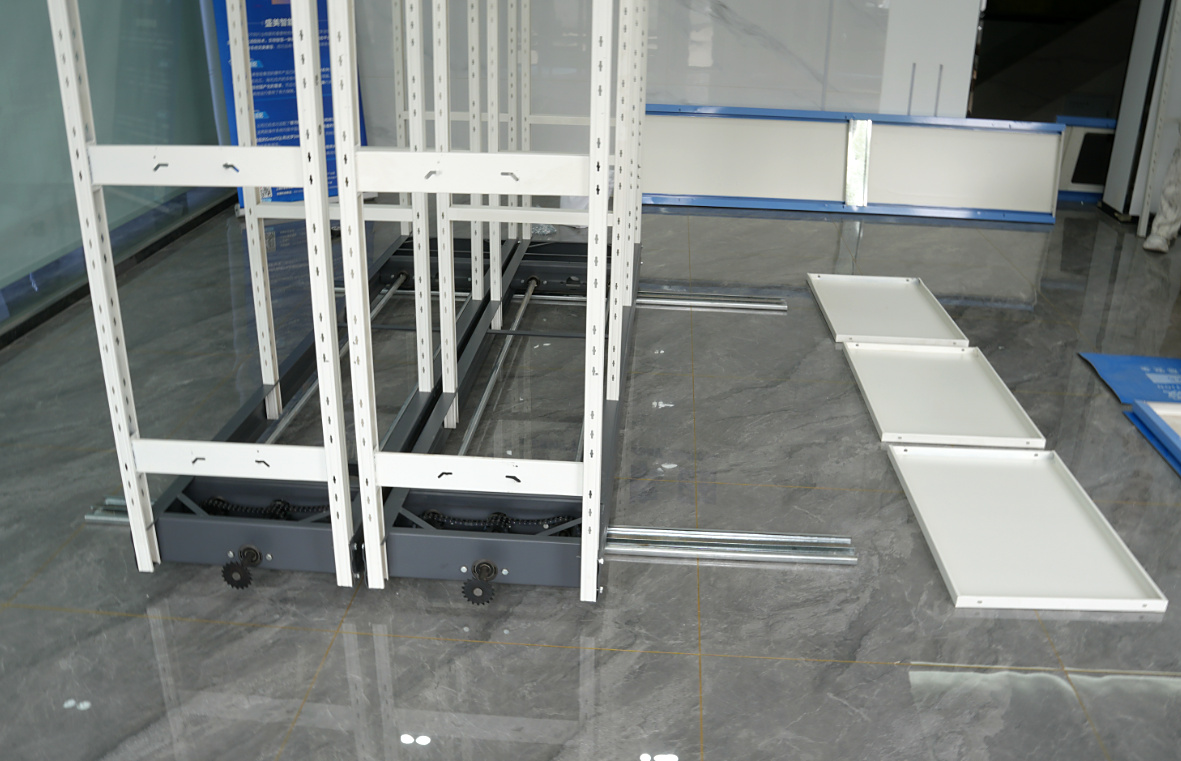

Each bay carries its own 0.5 kW motor on 220 V / 50 Hz (110 V / 60 Hz for export), slowed by a worm-gear reducer onto dual drive shafts and a matched chain pair. Two shafts, one chain tension — the bay tracks straight instead of crabbing.
Travel is soft-started and soft-stopped at 3–6 m/min, and aisles settle to within ±5 mm of where the terminal told them to be. When the power is out, a mechanical clutch drops out and the spider-wheel becomes a hand crank — no bay left stranded.
One touch on the terminal opens a single aisle or the whole run. Infrared aisle scanners, anti-pinch edges and an emergency stop ride along on every bay.
Guidance § 02
It tells you
which tray, which bay.
15.6-inch terminal

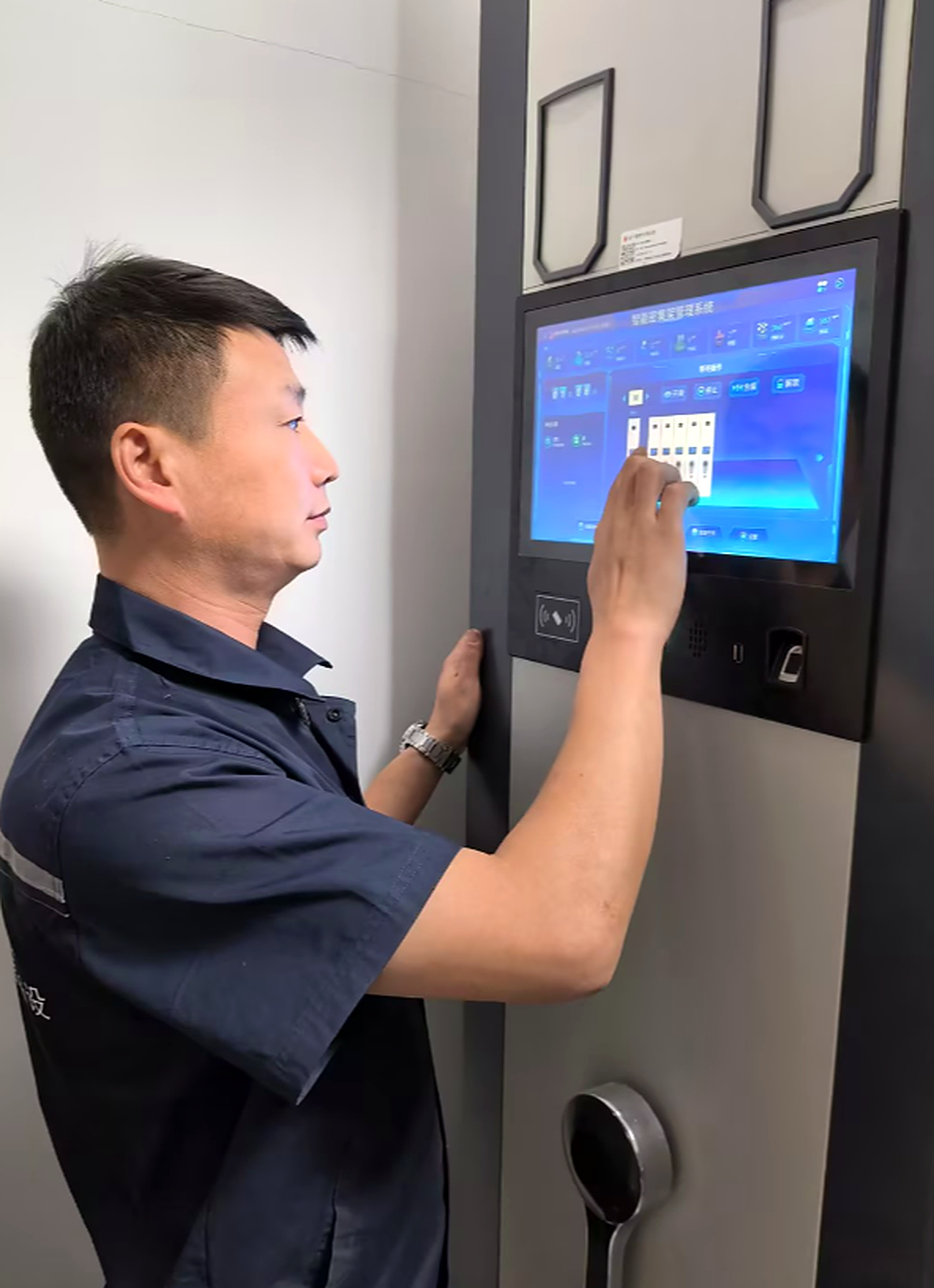

A wall or post-mounted LCD runs the desktop software and the mobile app side by side. Open, close, locate, lock — one screen, no training.
LED bay & shelf guidance
Light strips on the bay and the shelf level walk the operator to the exact tray. In a 60-bay run, that is the difference between a ten-minute search and a thirty-second pick.
RFID or barcode inventory
Every location is addressable. Scan on put-away and the system knows what is where; reconcile the whole archive without a physical count.
Optional climate log
Add temperature and humidity logging for sensitive records — the data rides out on the same terminal feed, no second box on the wall.
Control
System R&D § 03
The intelligence is
engineered in-house.

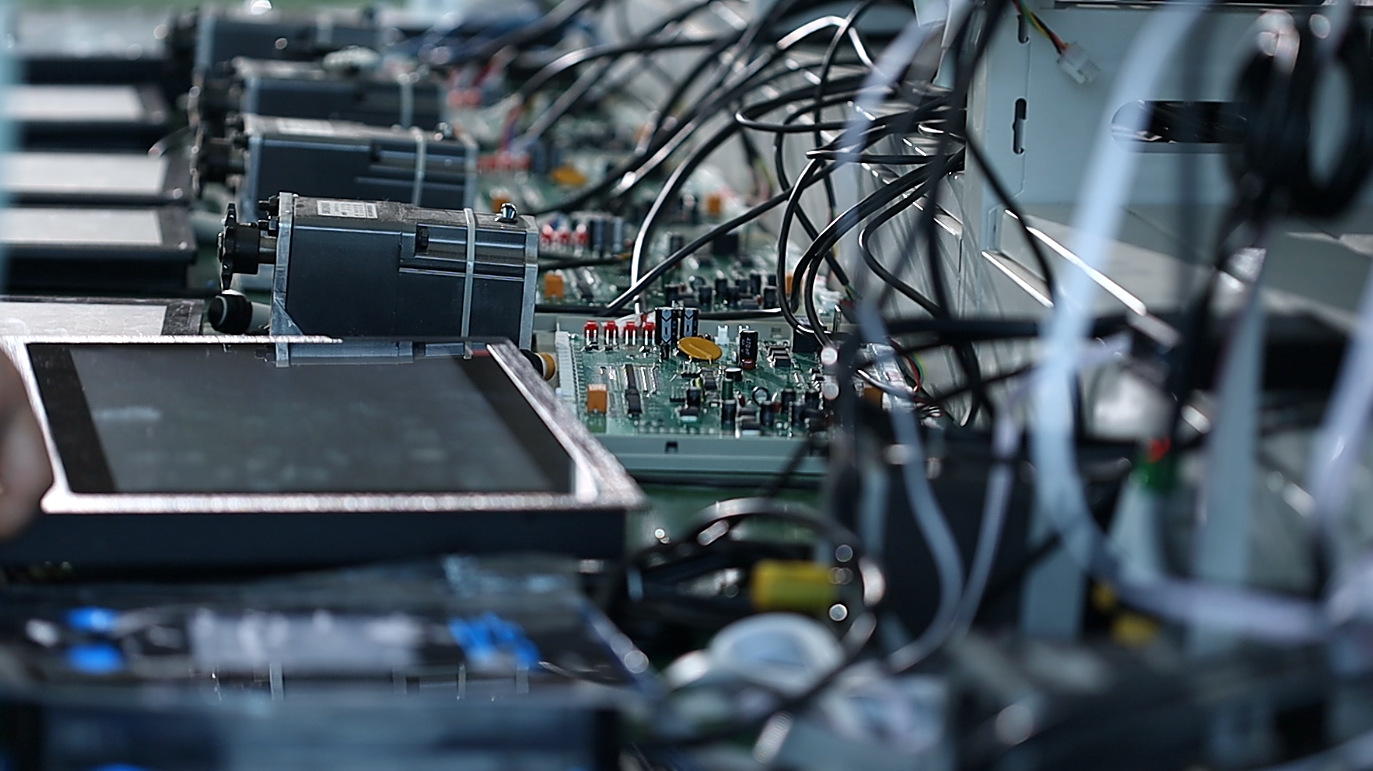

Control boards, drive firmware and touch terminals are designed, populated and age-tested on our own line — the same system that ships inside every Spider-Wheel column.
Shengmei control system · designed & built in-house

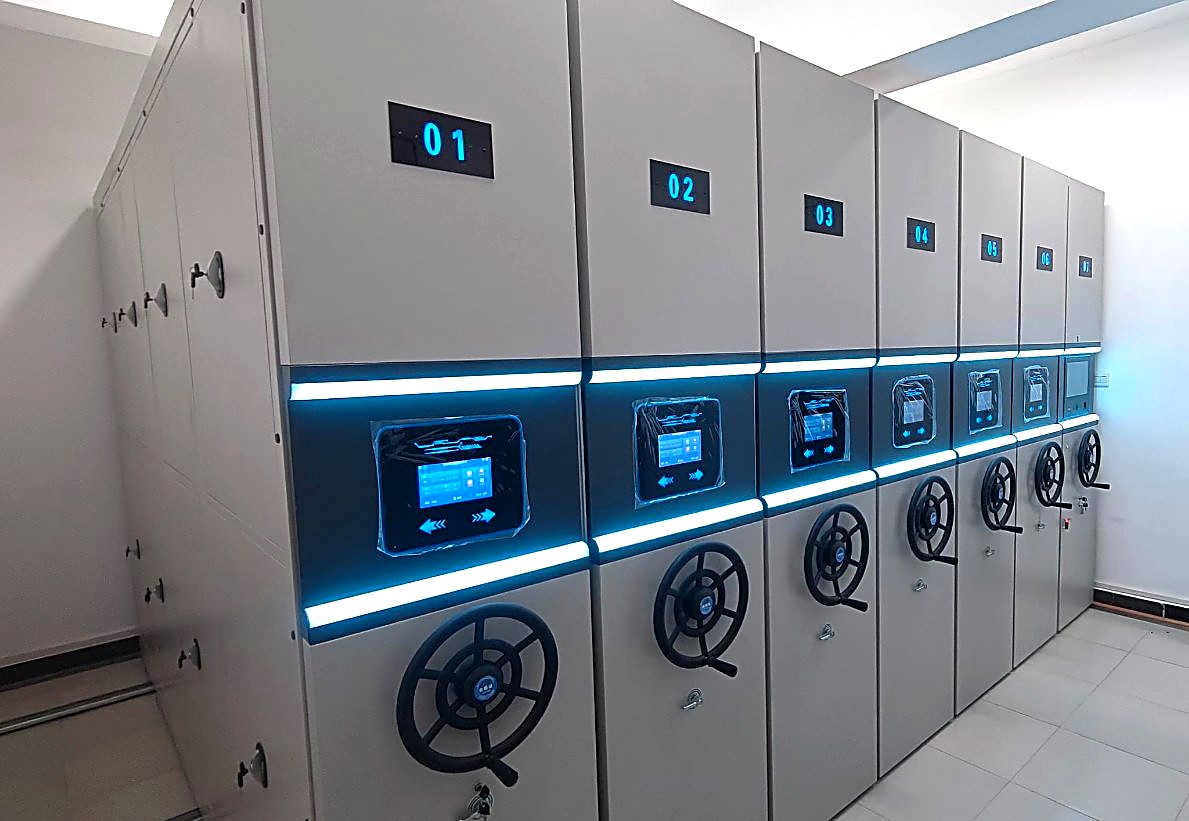

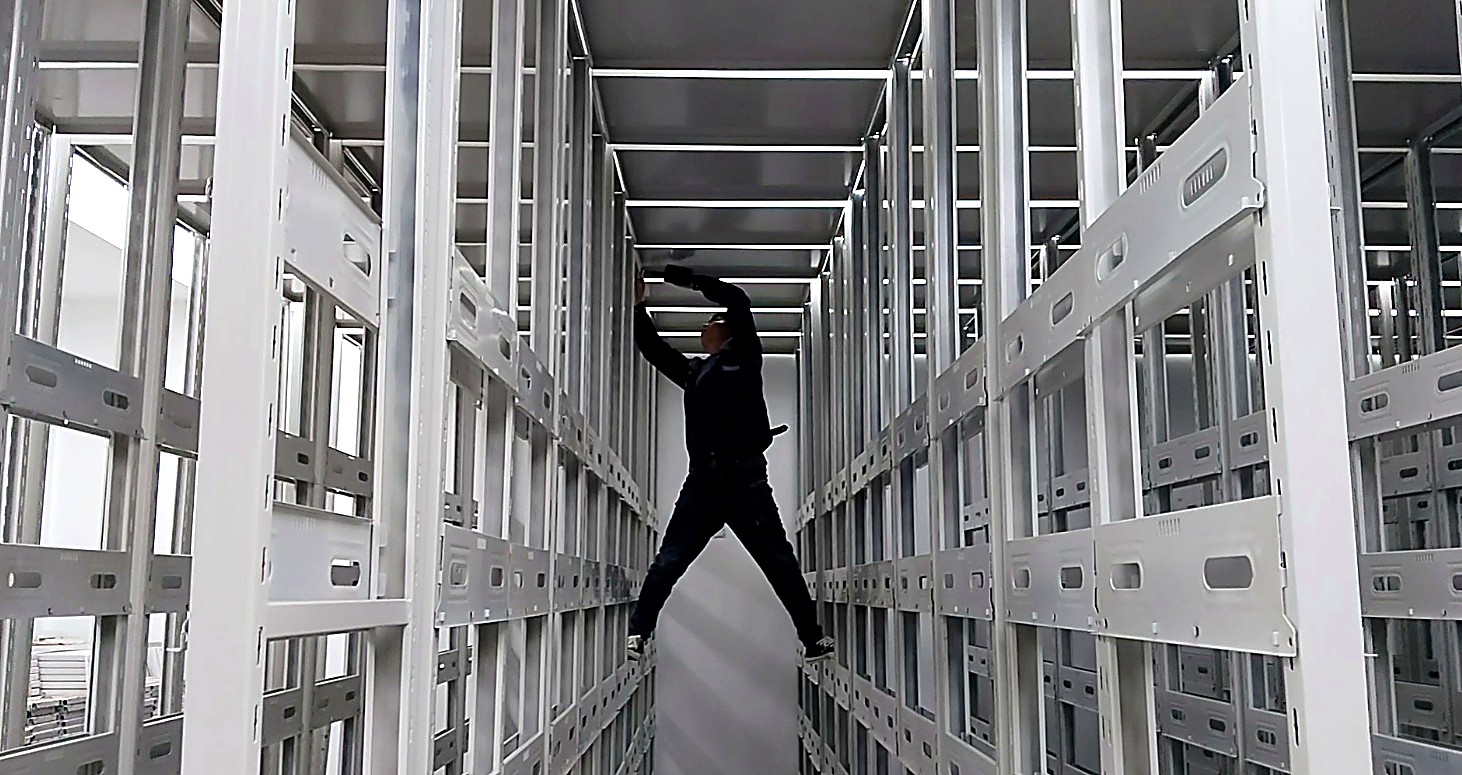

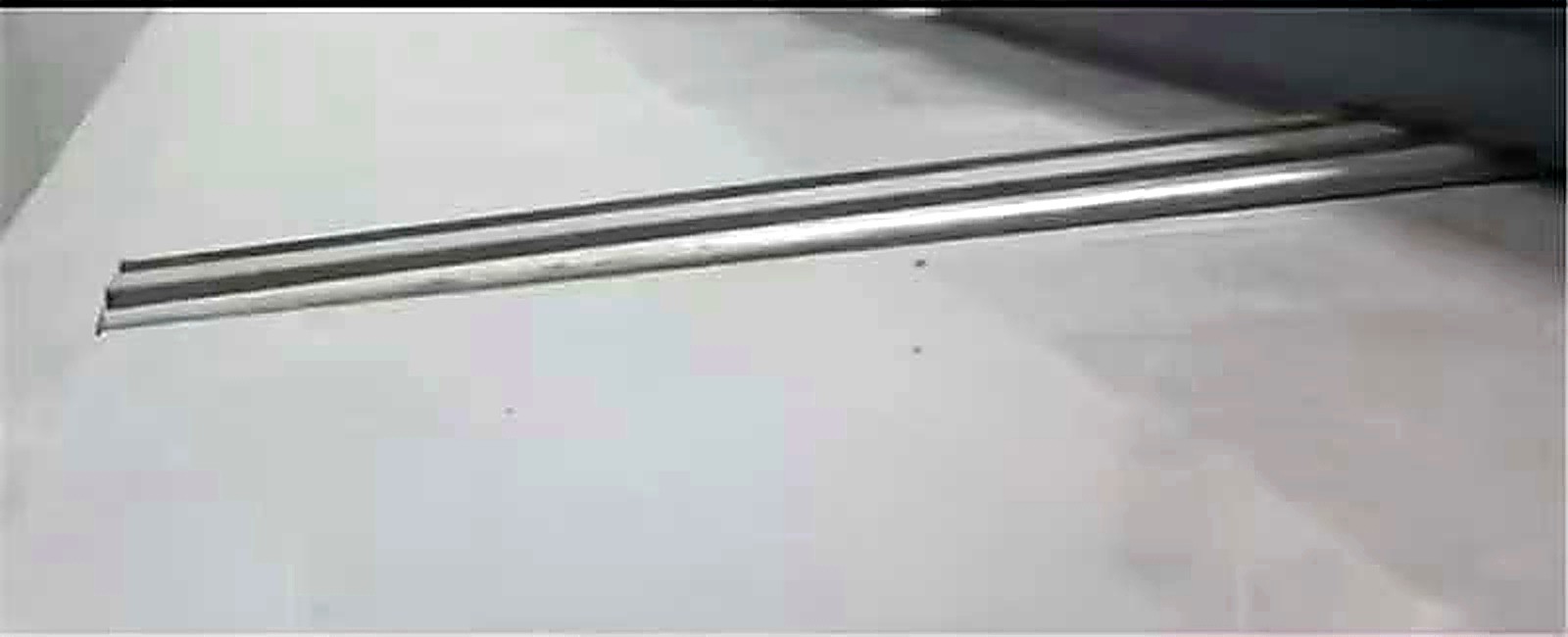

Evidence § 04
Shot on the line, not in a studio.
The spec, on the record § 05
Specs, not adjectives.
Dimensions & capacity
| Bay (double-sided) | 900 × 560 × 2300 mm |
| Custom width | 750–1200 mm |
| Custom height | 2300 / 2500 mm |
| Layers | 6 standard, 5–8 re-seatable on 30 mm pitch |
| Load per layer | 80 kg tested |
| Bay load | 480 kg (double-sided) |
| Bay weight | ≈146 kg |
Specify a run § 06
Send the room.
Get the bay count back.
Room dimensions, rough storage volume and country of delivery — we return a layout drawing, a container plan and an FOB quote within one working day. The Spider-Wheel Smart ships flat-packed in PE film and honeycomb board.
